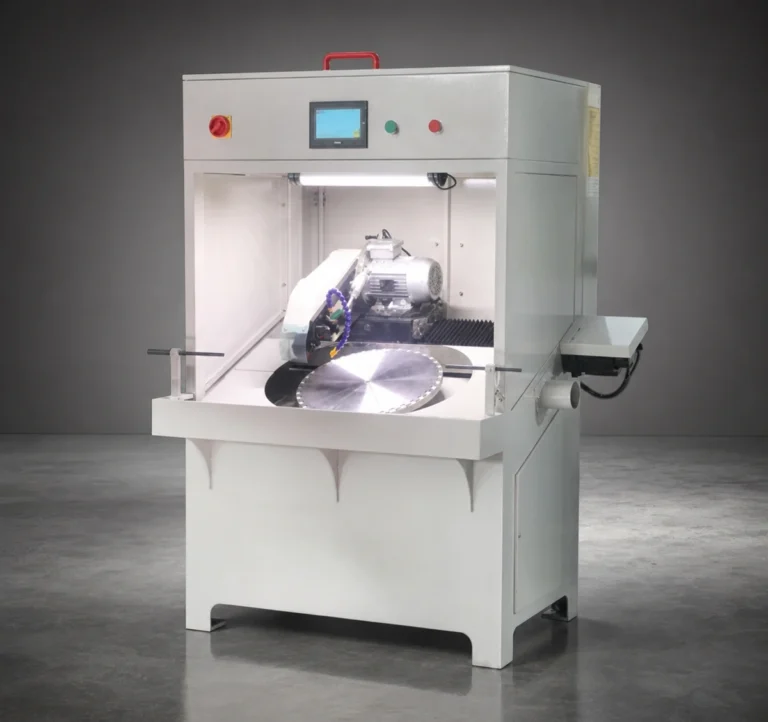

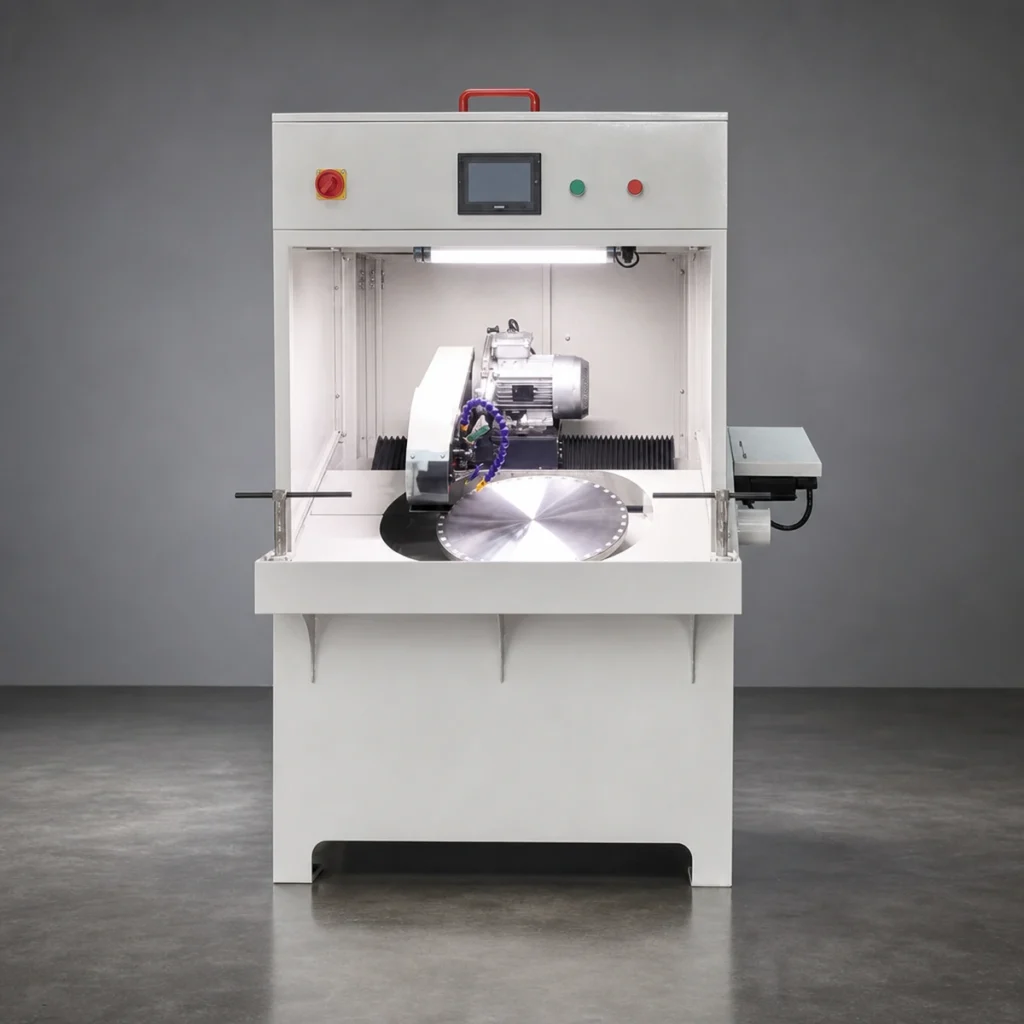

UB-MSP500B·Polishing
Automatic Water-Polishing Machine
The UB-MSP500B is an automatic water polishing machine for the bodies of carbide-tipped circular saw blades, and for diamond saw blades. Polishing takes both faces of the blade body to an even surface finish — the finish the customer sees on the finished blade. Belts come in 150#, 180# and 280# grit, so the pass can be matched to the finish wanted. It covers blades from 100 to 500 mm diameter with arbor sizes 10 to 50 mm, customisable on request, at a shift output of about 1,500 blades. One operator can run several machines.
Highlights
- Full automatic PLC operation with a clear, simple parameter set-up
- Polishing runs under cutting fluid, which holds down the heat of the pass and keeps blade flatness unaffected
- Polishing speed and number of passes are both adjustable
- Automatic feed with a delay setting at the sand-blasting line keeps the polish-to-blast boundary repeatable
Specifications
- Blade Diameter (mm)
- Ø100—Ø500
- Arbor Size (mm) customizable
- Ø10—Ø50
- Working Speed (Blades/8 Hours)
- Approx. 1,500
- Belt Size (mm)
- 1230×34
- Belt Grit
- 150# / 180# / 280#
- Voltage
- 380V (Three-Phase Four-Wire)
- Total Power (kW)
- 5.5
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1510×1150×1910
- Machine Weight (kg)
- 730
Processing
Machine
* Customizable — tell us the size you need.
