UB-MSP305C·Polishing

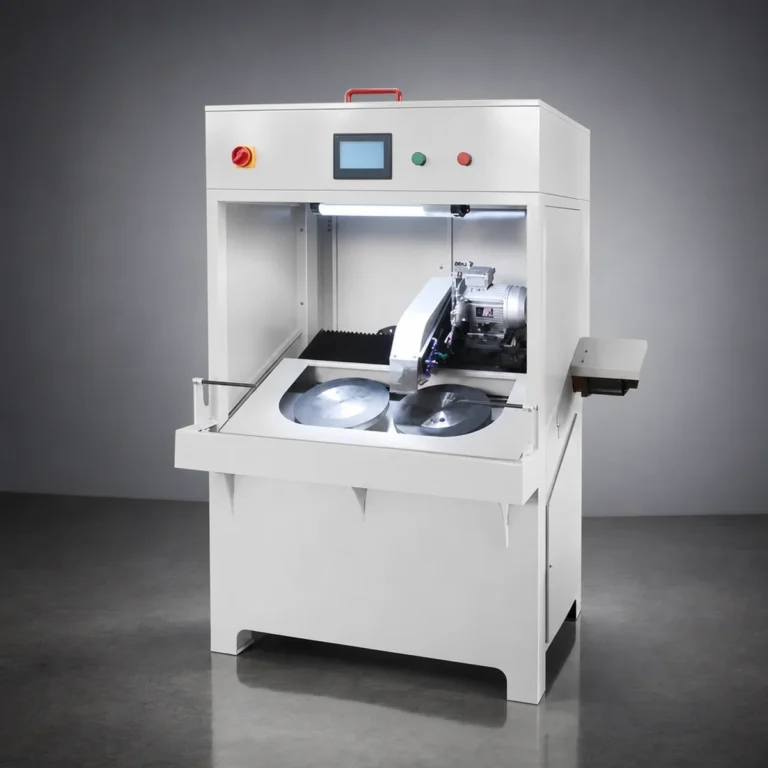

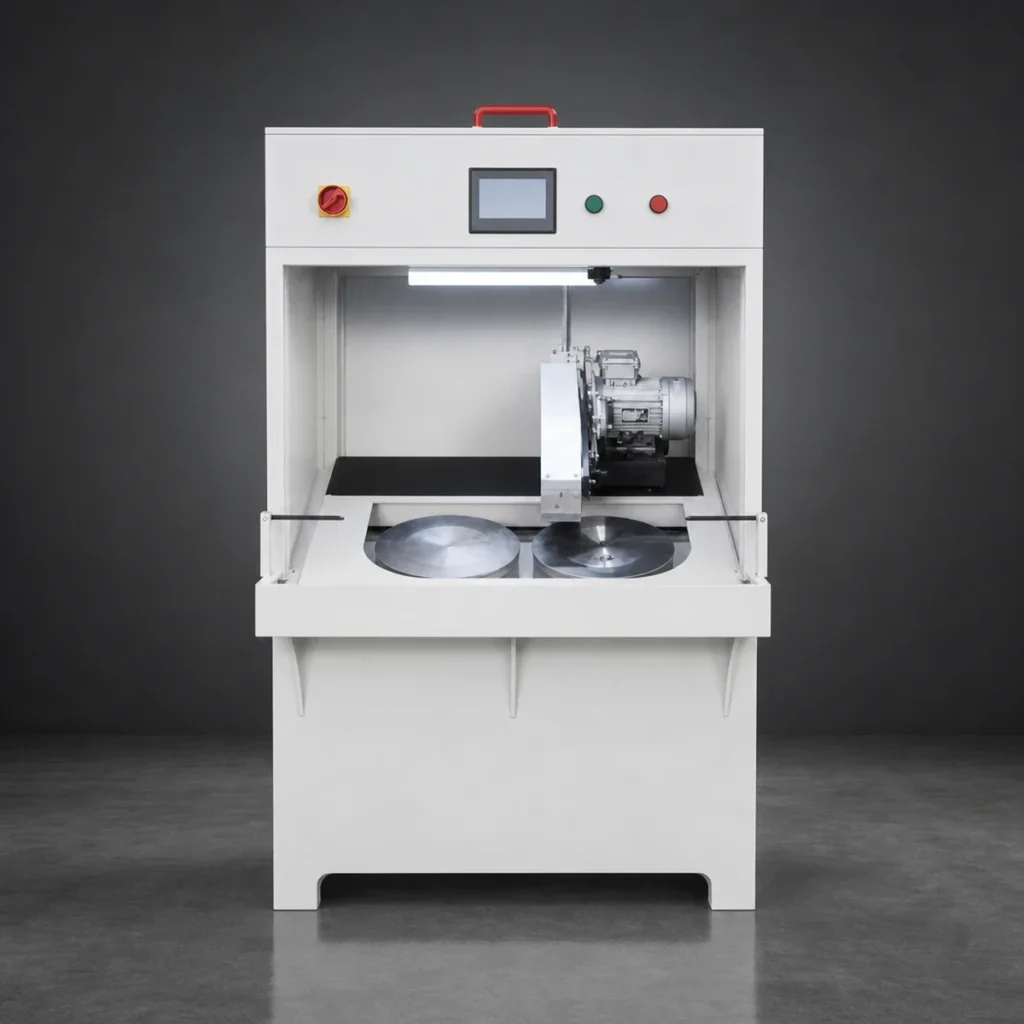

Automatic Double-Shaft Water Polishing Machine
The UB-MSP305C is an automatic double-shaft water polishing machine for the bodies of carbide-tipped circular saw blades, and for diamond saw blade bases. Polishing takes both faces of the blade body to an even surface finish — the finish the customer sees on the finished blade. Two spindles polish in alternation, so the machine is not standing idle through a workpiece change, which is what gets it to about 3,000 blades per 8-hour shift. Belts come in 150#, 180# and 320# grit. It takes blades from 100 to 305 mm diameter with arbor sizes 15 to 50 mm, and special specifications can be customised.
Highlights
- Full automatic PLC operation with a clear, simple parameter set-up
- Polishing runs under cutting fluid, which holds down the heat of the pass and keeps blade flatness unaffected
- Polishing speed and number of passes are both adjustable
- Automatic feed with a delay setting at the sand-blasting line keeps the polish-to-blast boundary repeatable
Specifications
- Blade Diameter (mm)
- Ø100—Ø305
- Arbor Size (mm) customizable
- Ø15—Ø50
- Working Speed (Blades/8 Hours)
- 3000
- Belt Size (mm)
- 1435×34
- Belt Grit
- 150# / 180# / 320#
- Voltage
- 380V (Three-Phase Four-Wire)
- Total Power (kW)
- 5.2
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1450×1200×1950
- Machine Weight (kg)
- 910
Processing
Machine
* Customizable — tell us the size you need.
