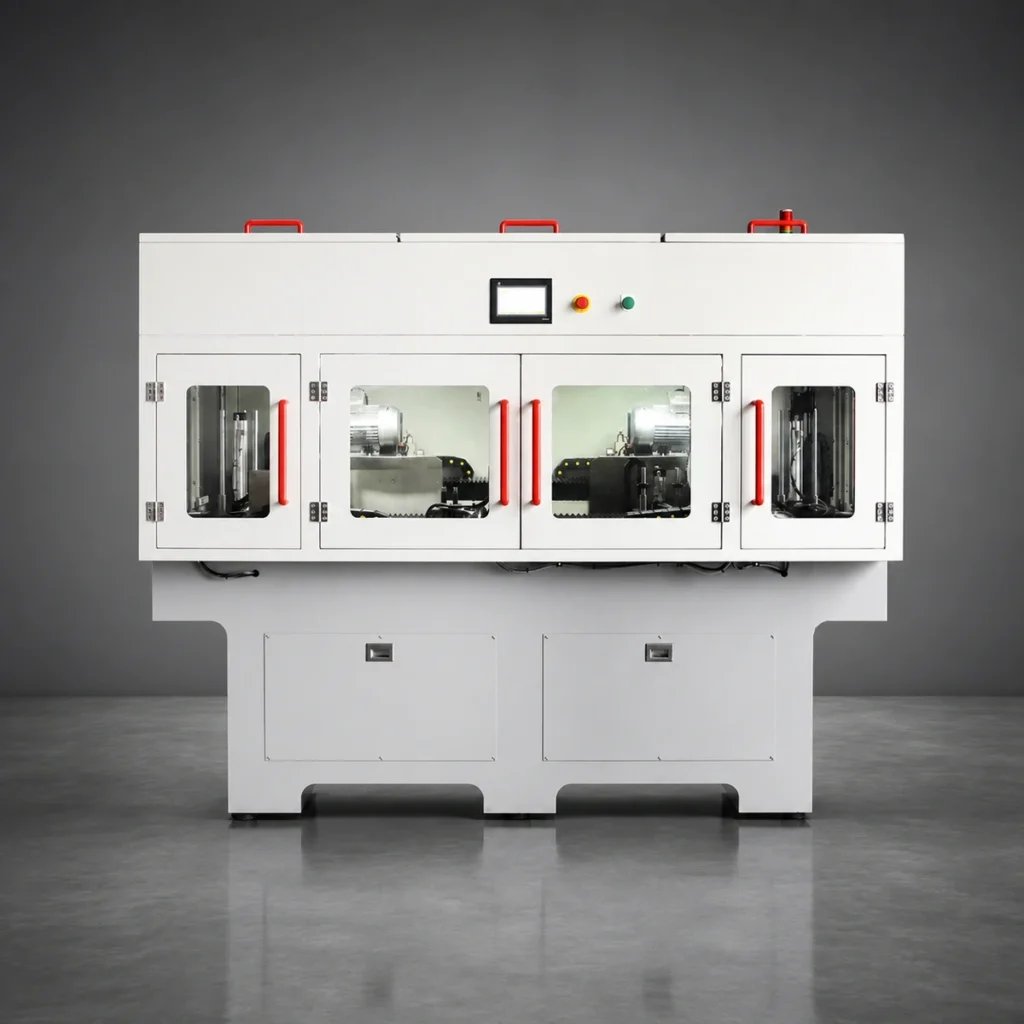

UB-MSP300B Full Automatic Double Side Water Polishing Machine (Robot Arm)
Fully automatic double-side water polishing equipment with a robot arm for polishing carbide circular saw blade bases; the source also states applicability to diamond saw blade bases.
Blade Range
Carbide circular saw blade diameter Ø100—Ø305 mm; diamond saw blade base surface polishing.
Arbor Size · Custom Specifications (mm)Ø15—Ø50 (Customizable)
Working Speed (Film/8 Hours)1200 Blades/8 Hours
Belt Size (mm)1435×34
Belt Grit150# / 180# / 320#
Highlights
- Fully enclosed design; robot-assisted automatic clamping; adjustable grinding speed and grinding count; PLC controls; cutting-fluid polishing; automatic cutting and feeding; delayed sandblasting-line coordination.
Where It Fits
Step 3 of 10 in the circular saw blade production line.
Previous: Tooth Seat Grinding Machines
Next: Brazing Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size · Custom Specifications (mm) | Ø15—Ø50 (Customizable) mm* |
| Working Speed (Film/8 Hours) | 1200 Blades/8 Hours Film/8 Hours |
| Belt Size (mm) | 1435×34 mm |
| Belt Grit | 150# / 180# / 320# |
| Voltage | 380V (Three-Phase Four-Wire) |
* Custom specification available on request.
Compare in This Group
| Specification | UB-MSP300BFull Automatic Double Side Water Polishing Machine (Robot Arm) | UB-MSP305CAutomatic Double-Shaft Water Polishing Machine | UB-MSP500BAutomatic Water-Polishing Machine | UB-MSP800CAutomatic Water-Polishing Machine |
|---|---|---|---|---|
| Arbor Size · Custom Specifications (mm) | Ø15—Ø50 (Customizable) | Ø15—Ø50 | Ø10—Ø50 (Customizable) | Ø15—Ø50 (Customizable) |
| Working Speed (Film/8 Hours) | 1200 Blades/8 Hours | 3000 | Approx. 1,500 Blades/Shift | Approx. 500 Blades/Shift |
| Belt Size (mm) | 1435×34 | 1435×34 | 1230×34 | 1230×34 |
| Belt Grit | 150# / 180# / 320# | 150# / 180# / 320# | 150# / 180# / 280# | 150# / 180# / 280# |
