UB-MLQ650C·Tooth Grinding

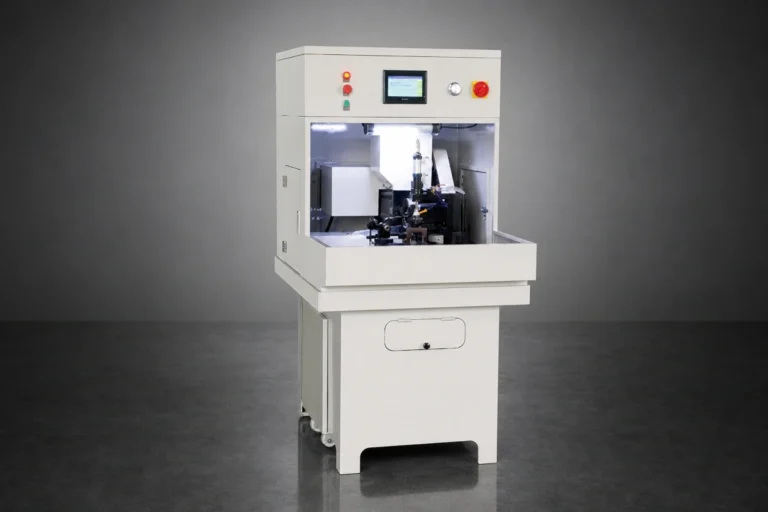

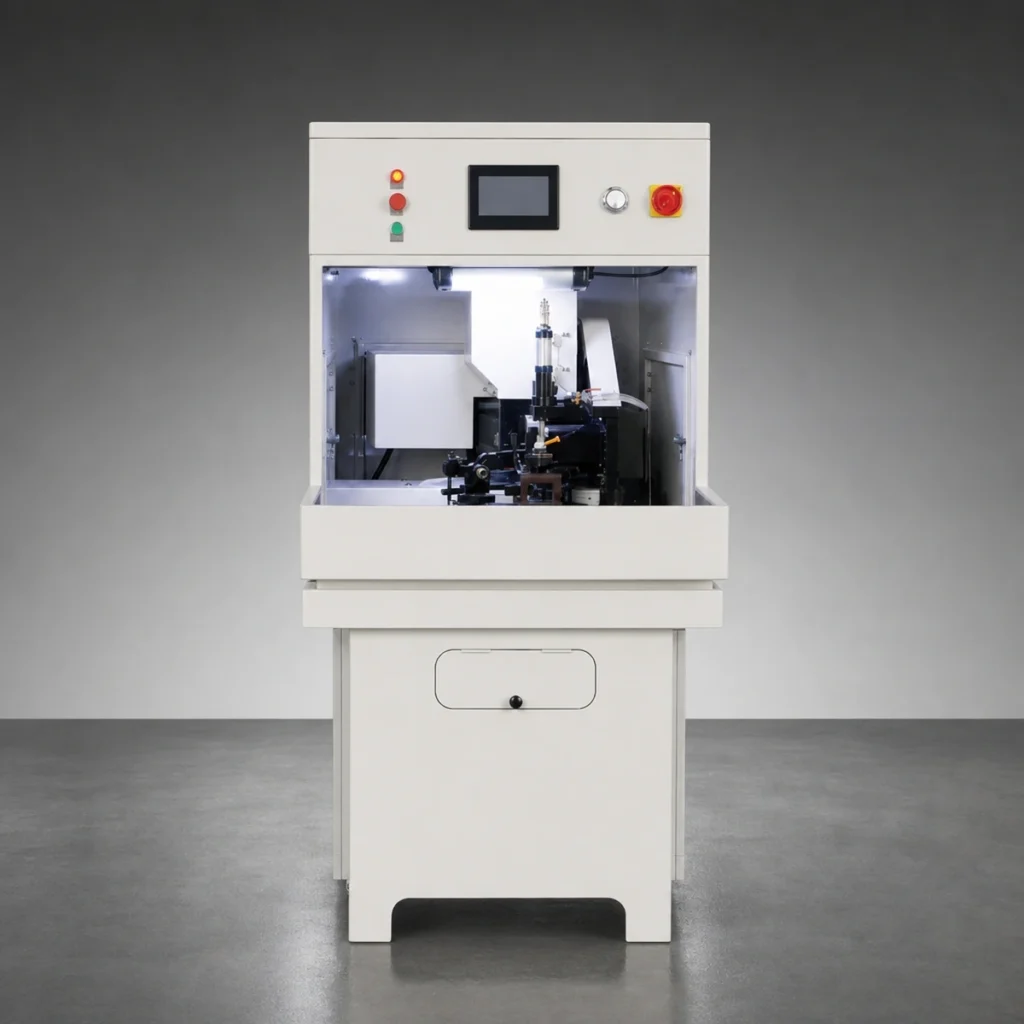

Automatic Move-Working Face Angle Grinding Machine
The UB-MLQ650C is an automatic move-working face angle grinding machine for professional-grade carbide-tipped circular saw blades. The face angle, also called the front angle, is the rake surface at the front of each carbide tip — the first surface to meet the workpiece. It sits on brazed carbide rather than on the steel body, so it is ground with a diamond wheel: 180# or 220# on this machine, holding grinding precision to 0.03 mm at 20 teeth a minute. It covers blades from 100 to 650 mm diameter, arbor sizes 12 to 50 mm and tooth pitches 5 to 65 mm.
Highlights
- Omron PLC and Mitsubishi servo micro-feed with a settable feed amount, for accurate grinding and low wheel wear
- Grinds every tooth form in one pass: alternate top bevel (ATB), ATB with a flat tooth, double ATB with a flat tooth, single-bevel and N-left / M-right patterns
- All left teeth are ground before all right teeth, which cuts head-reversal time and steadies throughput
- Automatic wheel compensation on left and right teeth keeps tooth height equal and takes up wear without manual feeding
Specifications
- Blade Diameter (mm)
- Ø100—Ø650
- Arbor Size (mm)
- Ø12—Ø50
- Max Tooth Pitch (mm)
- 5—65
- Grinding Speed (Teeth/min)
- 20
- Front Angle (°)
- 0—+30
- Grinding Length (mm)
- 0—25
- Front Bevel Angle · Front Angle (°)
- ±45
- Diamond Wheel · Front Angle (mm)
- Ø125×Ø20×6
- Diamond Wheel Grit · Front Angle
- 180#; 220#
- Grinding Precision (mm)
- ≤0.03
- Total Power (kW)
- 2.5
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1150×1000×1800
- Machine Weight (kg)
- 900
