UB-HTC355D·Brazing

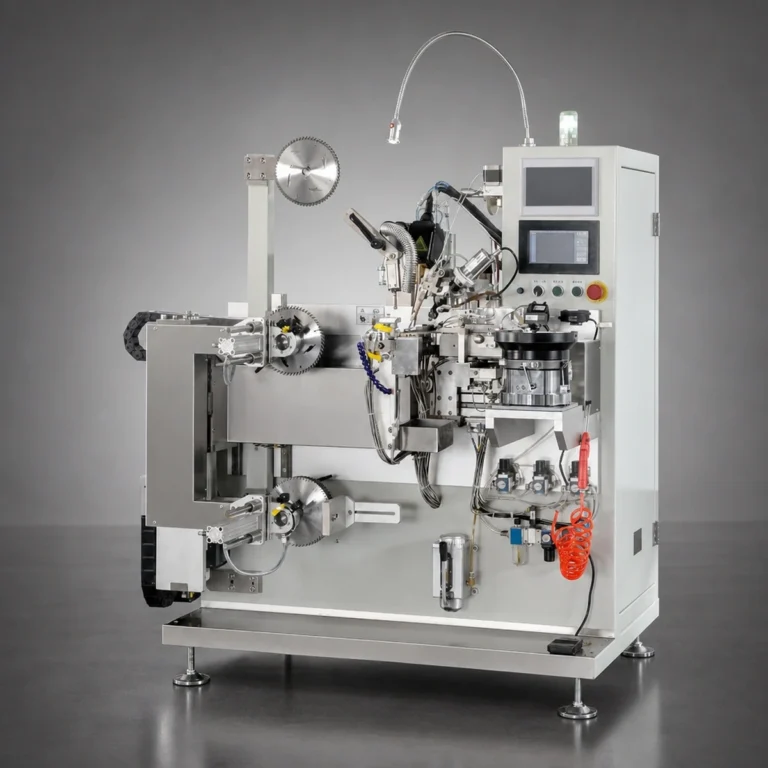

Full Automatic Brazing Machine (Robot Arm)
The UB-HTC355D is a fully automatic brazing machine that joins carbide tips to the bodies of circular saw blades, built as a wire-fed type. Brazing is the joint the finished blade depends on: the tip is set into its prepared seat and held by a brazed filler, and a weak joint loses the tooth in the cut however well it was ground afterwards. This machine brazes 650 teeth an hour to a strength of 120 MPa or better, positioning each tooth to within 50 microns, on tips 3.5 to 10 mm long, 1.5 to 8 mm wide and 1.4 to 5 mm thick at front angles of -5 to +35 degrees. It handles blades from 100 to 355 mm diameter with arbor sizes 12 to 50 mm. One operator can run up to 10 machines.
Highlights
- A robot arm clamps and releases each blade automatically
- Tooth selection, flux dispensing, wire feeding, brazing and tempering all run automatically for a secure joint
- Automatic tempering is finely adjustable for special requirements
- Left and right teeth are indexed and set automatically, and a blade is finished in one pass, including woodworking and brush-cutter blades
- An infrared pyrometer holds brazing temperature to within 1 degree, which is what makes joint strength repeatable
- An ultra-high-frequency induction heating controller with imported electrics: compact, low energy use, high throughput
Specifications
- Blade Diameter (mm)
- Ø100—Ø355
- Arbor Size (mm) customizable
- Ø12—Ø50
- Front Angle (°)
- -5—+35
- Tooth Length (mm)
- 3.5—10
- Tooth Width (mm)
- 1.5—8
- Tooth Thickness (mm)
- 1.4—5
- Brazing Speed (Teeth/hour)
- 650
- Brazing Strength (MPa)
- ≥120
- Positioning Accuracy (μm)
- 50
- Power Supply
- 220V 50Hz
- Total Power (kW)
- 6.8
- High-Frequency Output Power (kW)
- 6.5
- Working Water Pressure (kg/cm²)
- ≥3.5
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1210×925×1500
- Machine Weight (kg)
- 280
Processing
Machine
* Customizable — tell us the size you need.
