UB-VIM-1200-P8·Handle Injection Molding

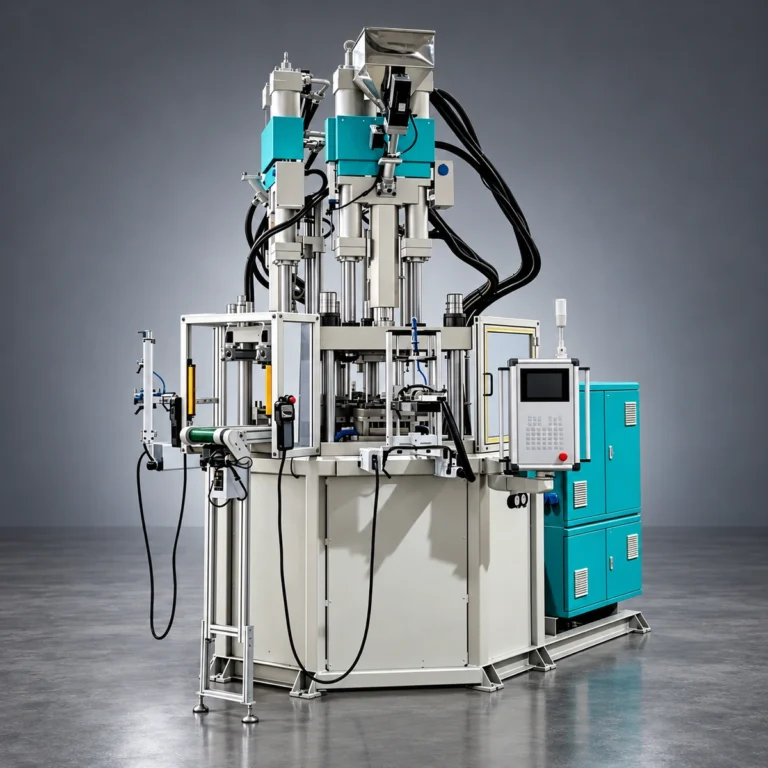

Vertical Injection Molding Machine
Vertical injection molding machine with modular injection units, dedicated mold clamping cylinders, turntable lift positioning control, and integrated robotic actions.
Highlights
- Multiple injection units are optional.
- Each mold has a dedicated clamping cylinder.
- A linear displacement sensor controls turntable lift; speed and position can be adjusted from the control panel.
- Robotic actions are integrated; the machine can be upgraded from 4 to 6 or 8 stations.
- The direct-pressure design extends mold life.
Specifications
- Clamping Force (t)
- 160 (80×2)
- Upper Platen Dimensions (mm)
- 660×1160
- Turntable Diameter (mm)
- Ø1000
- Mold Dimensions (mm)
- 350×450 (350×300)
- Minimum Mold Thickness (mm)
- 200/300
- Mold-Opening Stroke (mm)
- 300
- Maximum Mold-Opening Distance (mm)
- 500/600
- Ejection Force (t)
- 2.7
- Maximum Ejection Stroke (mm)
- 65
- Maximum System Pressure (MPa)
- ≈14
- Oil Tank Capacity (L)
- 800
- Motor Power (kW)
- 11/11
- Total Electrical Consumption (kW)
- 34.5/36
- Machine Dimensions (L×W×H) (m)
- ≈2.8×1.9×3.2
- Machine Weight (t)
- ≈6
- Injection Unit
- Multiple Units Optional
- Mold Clamping Cylinder
- Dedicated Cylinder per Mold
- Injection Stations
- 4 / 6 / 8 Stations
- Turret Lift Control
- Linear Displacement Sensor
- Motion Integration
- Robotic Actions
- Pressure Design
- Direct Pressure
