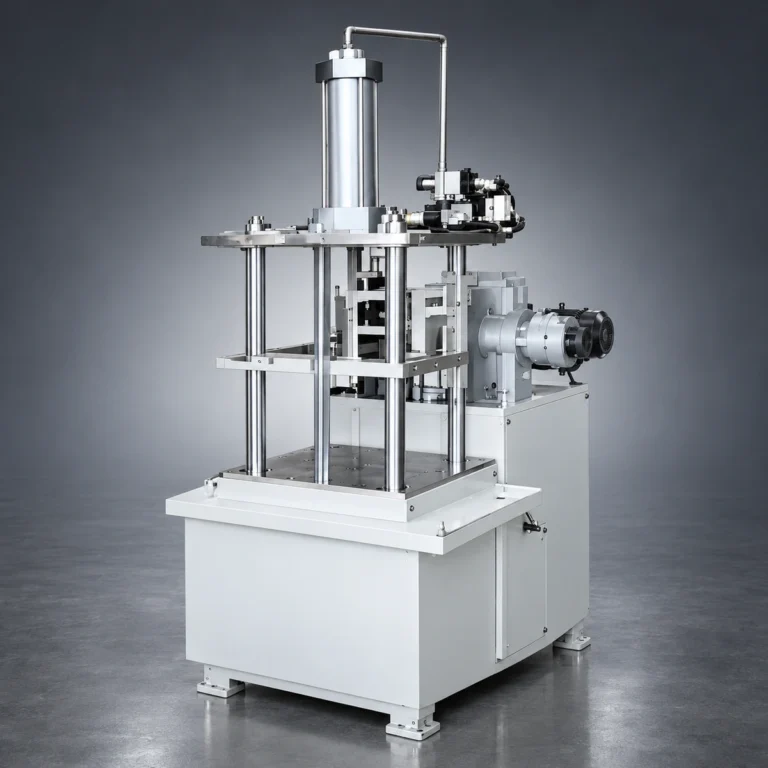

UB-GY20·Stamping Notching
Hydraulic Press
Hydraulic press for pliers stamping and notching.
Highlights
- Precise hydraulic pressure.
- Stamped markings are clear and notch dimensions are consistent.
- Stable and simple operation.
Specifications
- Rated Working Pressure (kN)
- 200
- Rated Hydraulic Working Pressure (MPa)
- 25
- Minimum Closed Height (mm)
- 80
- Maximum Closed Height (mm)
- 280
- Maximum Working Stroke (mm)
- 200
- Forward Speed (mm/s)
- 38
- Return Speed (mm/s)
- 54
- Motor Power (kW)
- 4
- Hydraulic Tank Capacity (L)
- 240
- Worktable Dimensions (mm)
- 600×470
- Clear Width Between Columns (mm)
- 377
- Net Weight (t)
- 0.8
