UB-MLC300F·Tooth Grinding

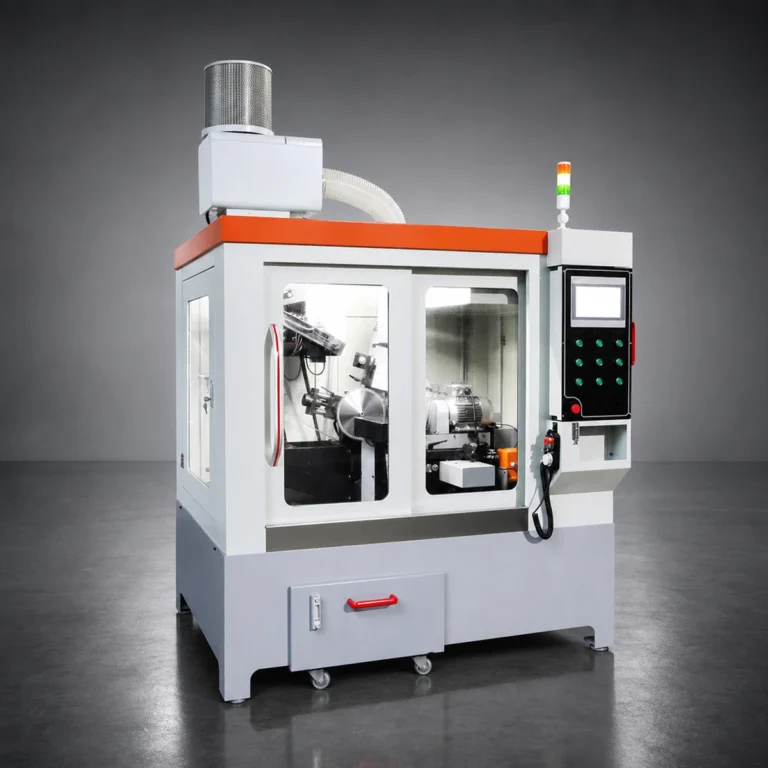

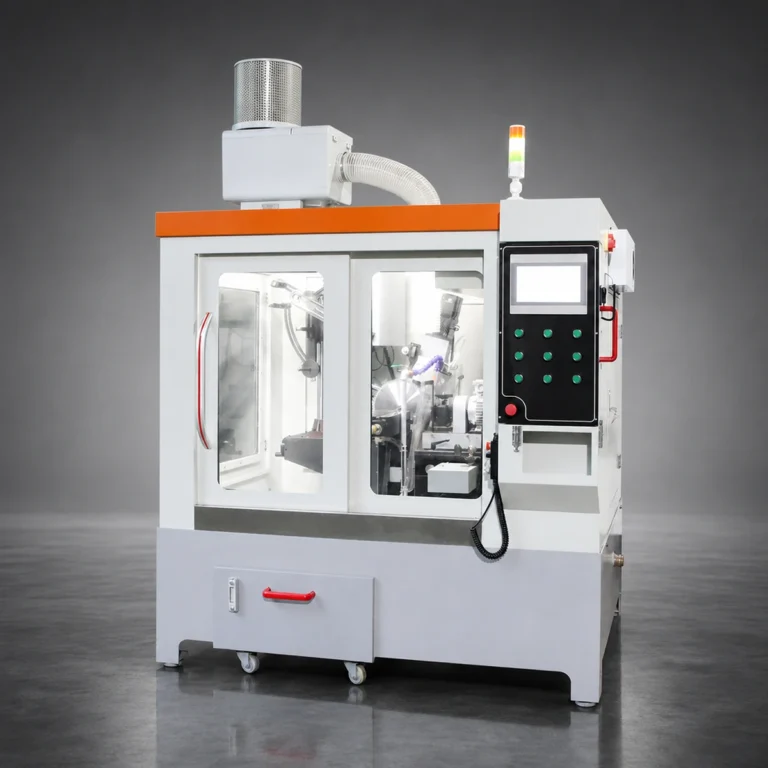

Full Automatic Side Angle Grinding Machine (Robot Arm)
The UB-MLC300F is a fully automatic side angle grinding machine for professional-grade carbide-tipped circular saw blades. Side angle grinding puts the clearance on the two flanks of each carbide tip: the tip stands proud of the blade body on both sides, and these two ground faces are what keep the body from rubbing the wall of the cut. They are brazed carbide rather than steel, so they are ground with a diamond wheel: 220# or 280# on this machine, holding grinding precision to 0.02 mm at 20 teeth a minute. It works in a fully enclosed cabinet and covers blades from 100 to 315 mm diameter, with an applicable range of 76 to 260 mm, arbor sizes 12 to 50 mm and tooth pitches 5 to 65 mm, and special arbor sizes can be customised. One operator can run 10 to 15 machines.
Highlights
- A robot arm clamps and releases each blade automatically
- Omron PLC and Mitsubishi servo micro-feed on a rigid frame of HIWIN ball screws and precision guideways, for accurate vertical grinding
- Flexible programming: feed-in and feed-out positions are freely chosen, which allows a range of grinding strategies
- Automatic compensation removes manual feeding once the value is set, which holds part-to-part consistency
- Grinding allowance for special tooth forms can be set freely
Specifications
- Blade Diameter (mm)
- Ø100—Ø315 (Ø76—Ø260)
- Arbor Size (mm)
- Ø12—Ø50
- Max Tooth Pitch (mm)
- 5—65
- Grinding Speed (Teeth/min)
- 20
- Front Angle (°)
- -5—+30
- Radial Clearance (°)
- -5—5
- Circumferential Clearance (°)
- 0—5
- Grinding Width · Side Angle (mm)
- 1.5—13
- Grinding Length (mm)
- 3—12
- Diamond Wheel · Side Angle (mm)
- Ø100×Ø20×4
- Diamond Wheel Grit · Side Angle
- 220#; 280#
- Grinding Precision (mm)
- ≤0.02
- Grinding Edge Thickness (mm)
- 1.5—4
- Total Power (kW)
- 3.5
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1805×1400×2603
- Machine Weight (kg)
- 1796
