UB-BPG300A·Packing

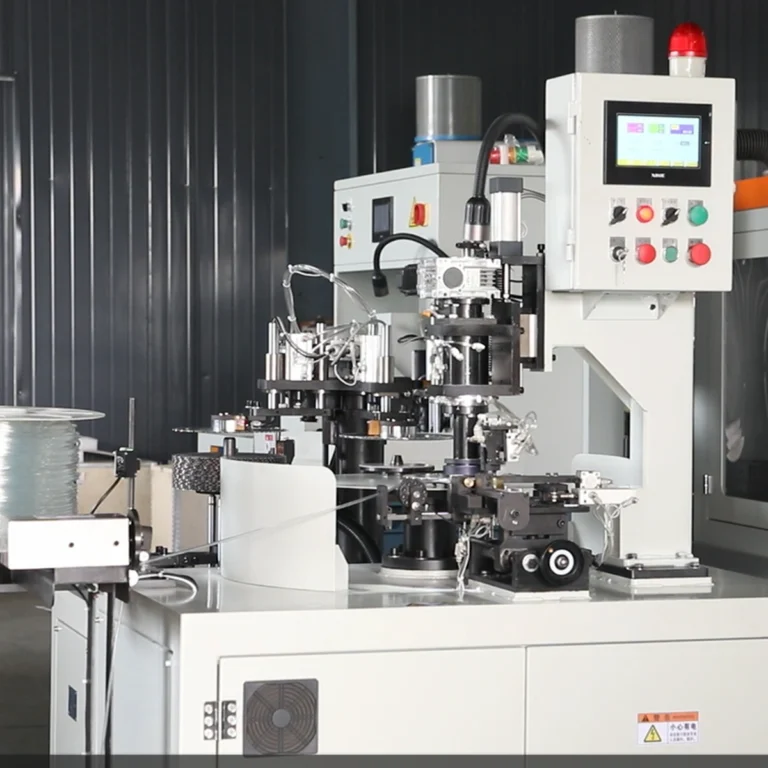

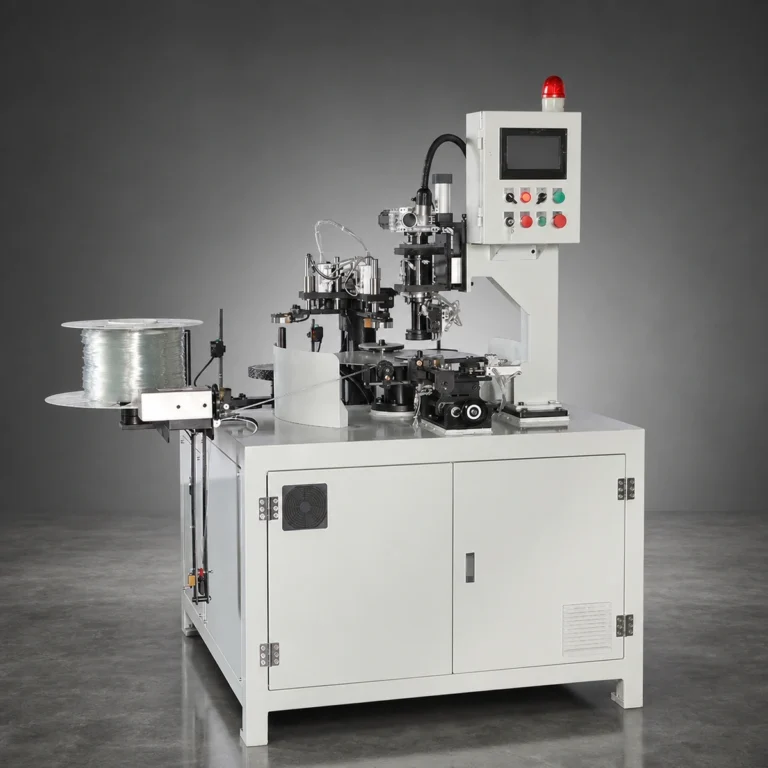

Full Automatic Tubing Machine (Robot Arm)

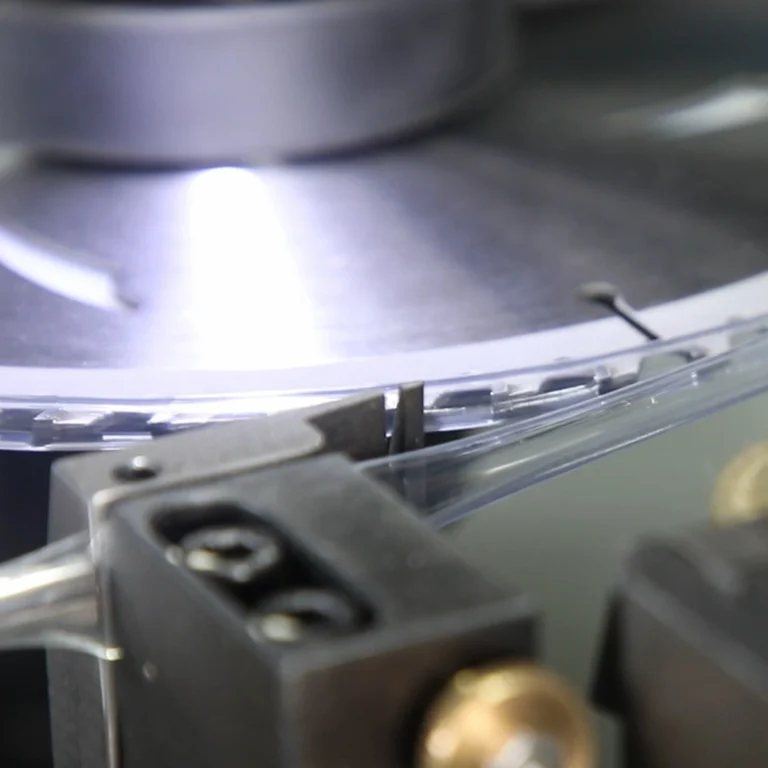

The UB-BPG300A is a fully automatic tubing machine for finished carbide-tipped circular saw blades. Tubing pulls a protective plastic tube over the tooth ring — the last operation on the line, and the one that decides whether the tips arrive at the customer in the state they left the grinder in, since a chipped tip is scrap however well it was ground. It runs at about 3,600 blades per 8-hour shift on blades from 100 to 300 mm diameter with arbor sizes 15 to 50 mm, and special specifications can be customised.
Highlights
- Full automatic PLC operation with a clear, simple parameter set-up

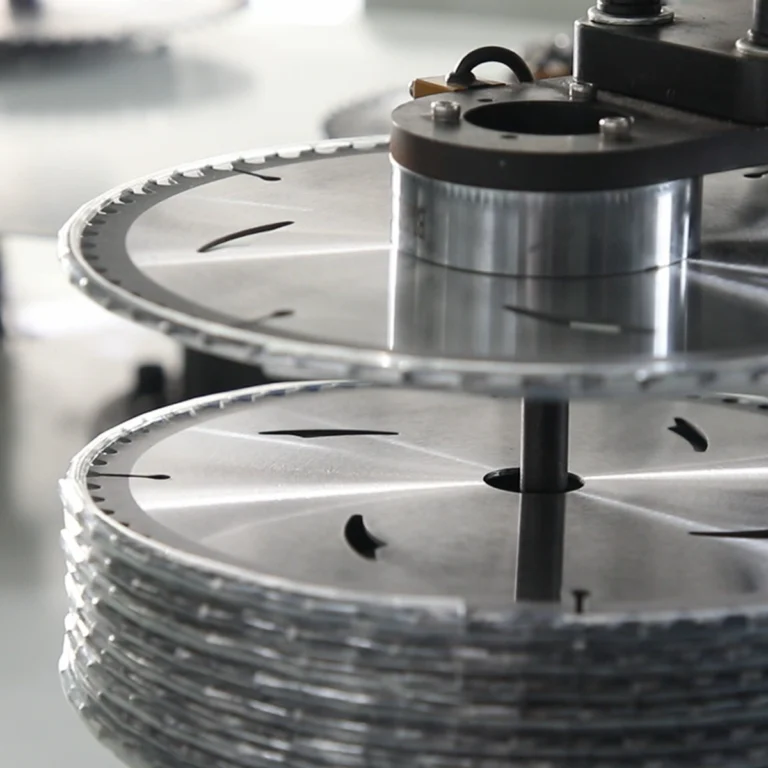

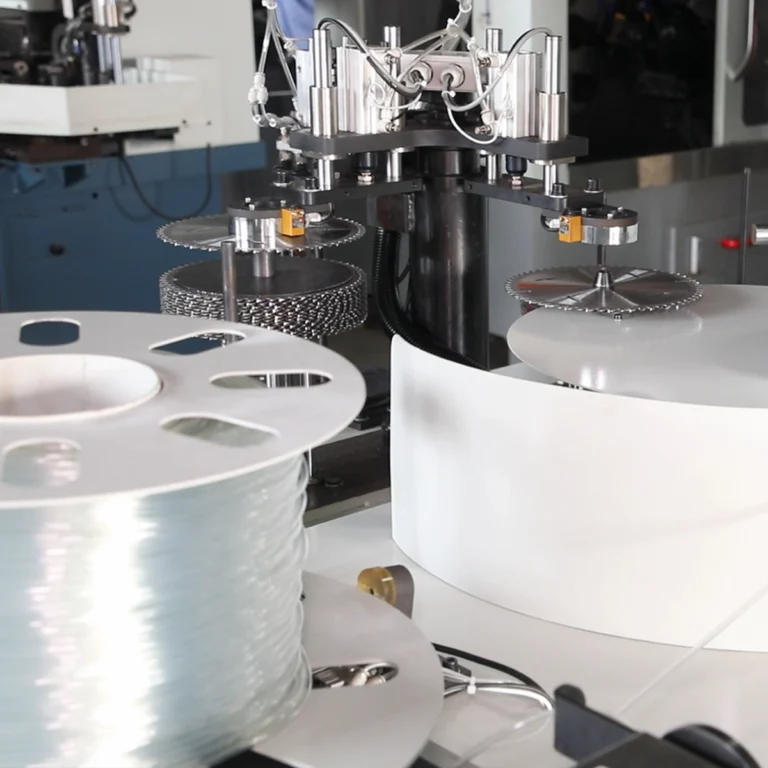

- A robot arm loads and unloads the blades automatically
- A cam-driven indexing turntable keeps the cycle time stable
Specifications
- Blade Diameter (mm)
- Ø100—Ø300
- Arbor Size (mm) customizable
- Ø15—Ø50
- Voltage (V)
- 380
- Total Power (kW)
- 1.2
- Working Air Pressure (MPa)
- 0.5
- Dimensions (mm)
- 1900×1600×1900
- Machine Weight (kg)
- 680
Processing
Machine
* Customizable — tell us the size you need.
