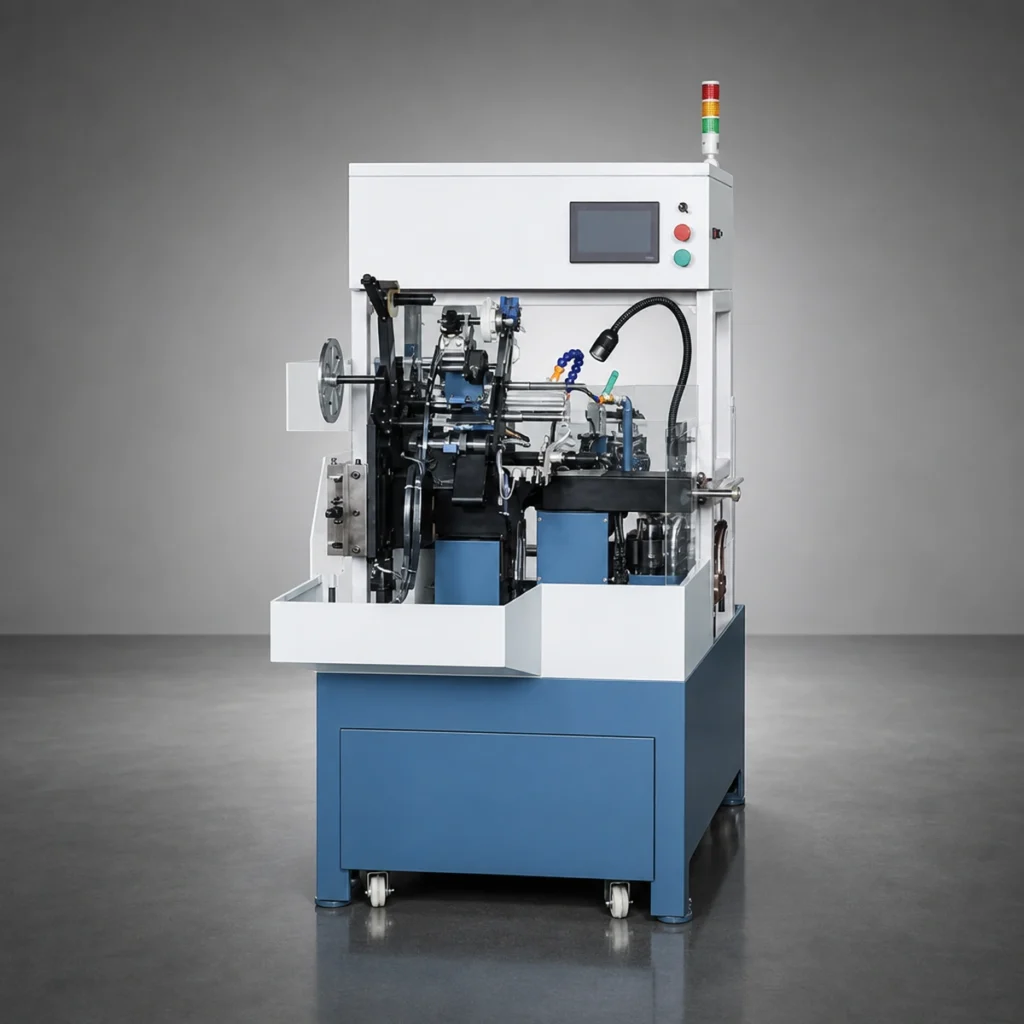

UB-MLC260J 3-Axis Saw Blade Side Angle Grinding Machine (3-Axis Truss Manipulator)
Automatic 3-axis side-angle grinding equipment for carbide circular saw blades with a 3-axis truss manipulator for automatic loading and unloading.
Blade Range
Blade diameter Ø100—Ø260 mm; arbor size Ø15—Ø50 mm; tooth pitch 5—65 mm.
Arbor Size (mm)Ø15—Ø50
Max Tooth Pitch (mm)5—65
Grinding Speed (Teeth/min)20
Front Angle (°)-5—+30
Highlights
- Semi-enclosed protective design; robotic automatic clamping supports one operator managing 10–15 machines; PLC and servo control with micro-feed; automatic grinding-wheel loss compensation; special tooth-form grinding settings.
Where It Fits
Step 7 of 10 in the circular saw blade production line.
Previous: Welding Strength Testers
Next: Cleaning Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size (mm) | Ø15—Ø50 mm |
| Max Tooth Pitch (mm) | 5—65 mm |
| Grinding Speed (Teeth/min) | 20 Teeth/min |
| Front Angle (°) | -5—+30 ° |
| Radial Clearance (°) | -5—5 ° |
| Circumferential Clearance (°) | 0—5 ° |
| Grinding Width · Side Angle (mm) | 1.5—13 mm |
| Grinding Length (mm) | 3—12 mm |
| Diamond Wheel · Side Angle (mm) | Ø100×Ø20×5 mm |
| Diamond Wheel Grit · Side Angle | 220#; 280# |
| Grinding Precision (mm) | ≤0.03 mm |
| Grinding Edge Thickness (mm) | 1.5—4 mm |
Compare in This Group
| Specification | UB-MLC260J3-Axis Saw Blade Side Angle Grinding Machine (3-Axis Truss Manipulator) | UB-MLC300FFull Automatic Side Angle Grinding Machine (Robot Arm) | UB-MLC300JFull Automatic Side Angle Grinding Machine (Robot Arm) | UB-MLC400BFully Automatic Side Angle Grinding Machine | UB-MLC400J3-Axis Saw Blade Side Angles Grinding Machine (3-Axis Truss Manipulator) | UB-MLC650CAutomatic Vertical Side Angle Grinding Machine |
|---|---|---|---|---|---|---|
| Arbor Size (mm) | Ø15—Ø50 | Ø12—Ø50 | Ø12—Ø50 | Ø10—Ø32 | Ø10—Ø32 | Ø15—Ø50 |
| Max Tooth Pitch (mm) | 5—65 | 5—65 | 5—65 | 80 | 80 | 5—65 |
| Grinding Speed (Teeth/min) | 20 | 20 | 20 | 4—20 | 4—20 | 20 |
| Grinding Width · Side Angle (mm) | 1.5—13 mm | 1.5—13 mm | 1.5—13 mm | 1.5—12 mm | 1.5—12 mm | 1.5—13 mm |
