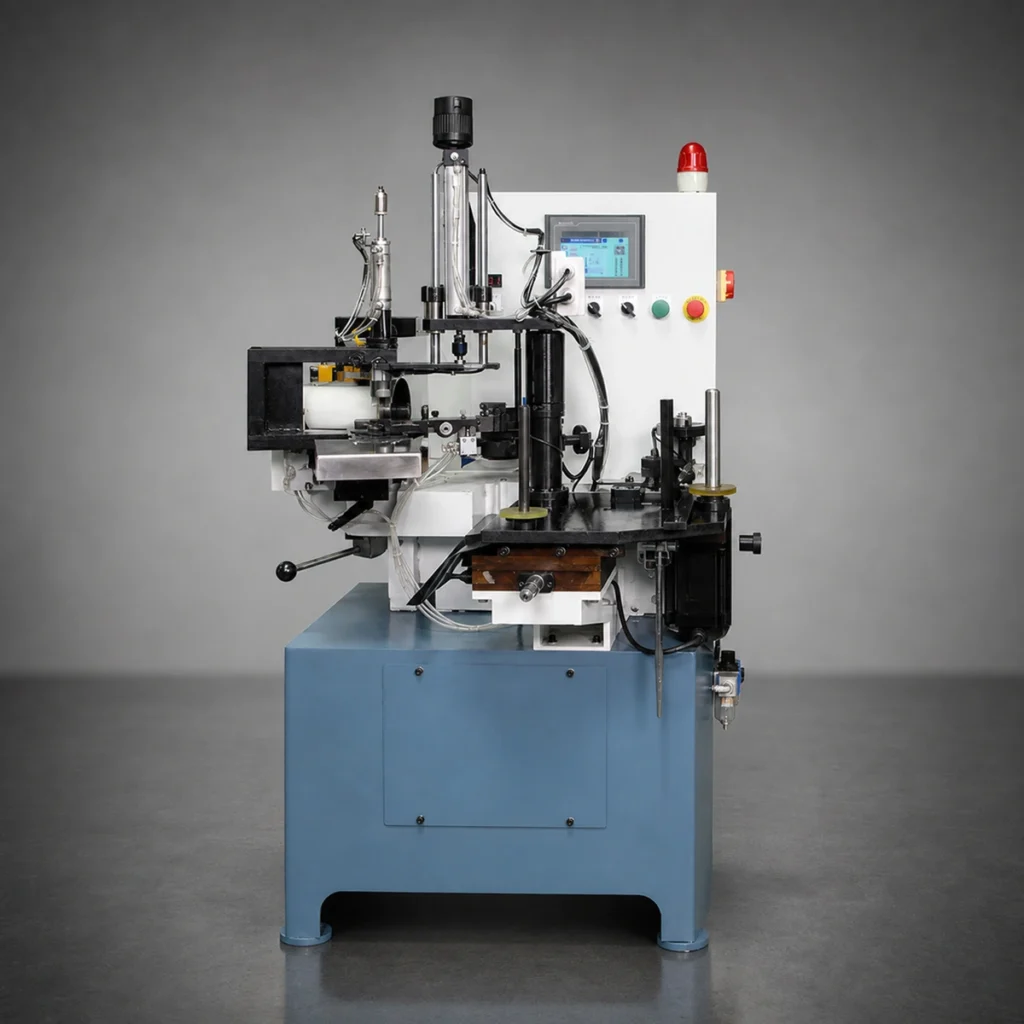

UB-MCZ305B Full Automatic Seat Grinding Machine (Robot Arm)
Automatic seat-grinding equipment for carbide circular saw blades with robotic blade clamping.
Blade Range
Blade diameter Ø100—Ø305 mm; arbor size Ø12—Ø50 mm; tooth pitch 8—50 mm.
Arbor Size · Custom Specifications (mm)Ø12—Ø50
Tooth Pitch (mm)8—50
Grinding Speed (T/min)10—30
Diamond Wheel · Electroplated Diamond Wheel (mm)Ø255×Ø25.4×2—3
Highlights
- Robotic automatic blade clamping; one operator can manage 10–15 machines.
- Dedicated mechanical transmission maintains consistent tooth-feed position and grinding depth.
- Corrects base-stamping diameter runout to within 0.05 mm.
- Rated output is approximately 15,000 teeth per shift.
Where It Fits
Step 2 of 10 in the circular saw blade production line.
Previous: Reaming Machines
Next: Polishing Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size · Custom Specifications (mm) | Ø12—Ø50 mm* |
| Tooth Pitch (mm) | 8—50 mm |
| Grinding Speed (T/min) | 10—30 T/min |
| Diamond Wheel · Electroplated Diamond Wheel (mm) | Ø255×Ø25.4×2—3 mm |
| Power Supply | 380V, Three-Phase Four-Wire |
* Custom specification available on request.
Compare in This Group
| Specification | UB-MCZ305BFull Automatic Seat Grinding Machine (Robot Arm) | UB-MCZ800AAutomatic Single-Shaft Seat Grinding Machine |
|---|---|---|
| Arbor Size · Custom Specifications (mm) | Ø12—Ø50 | Ø12—Ø50 |
| Tooth Pitch (mm) | 8—50 | 8—50 |
| Grinding Speed (T/min) | 10—30 | 10—30 |
| Diamond Wheel · Electroplated Diamond Wheel (mm) | Ø255×Ø25.4×2—3 | Ø255×Ø25.4×2—3 |
