UB-JQD800B·Test

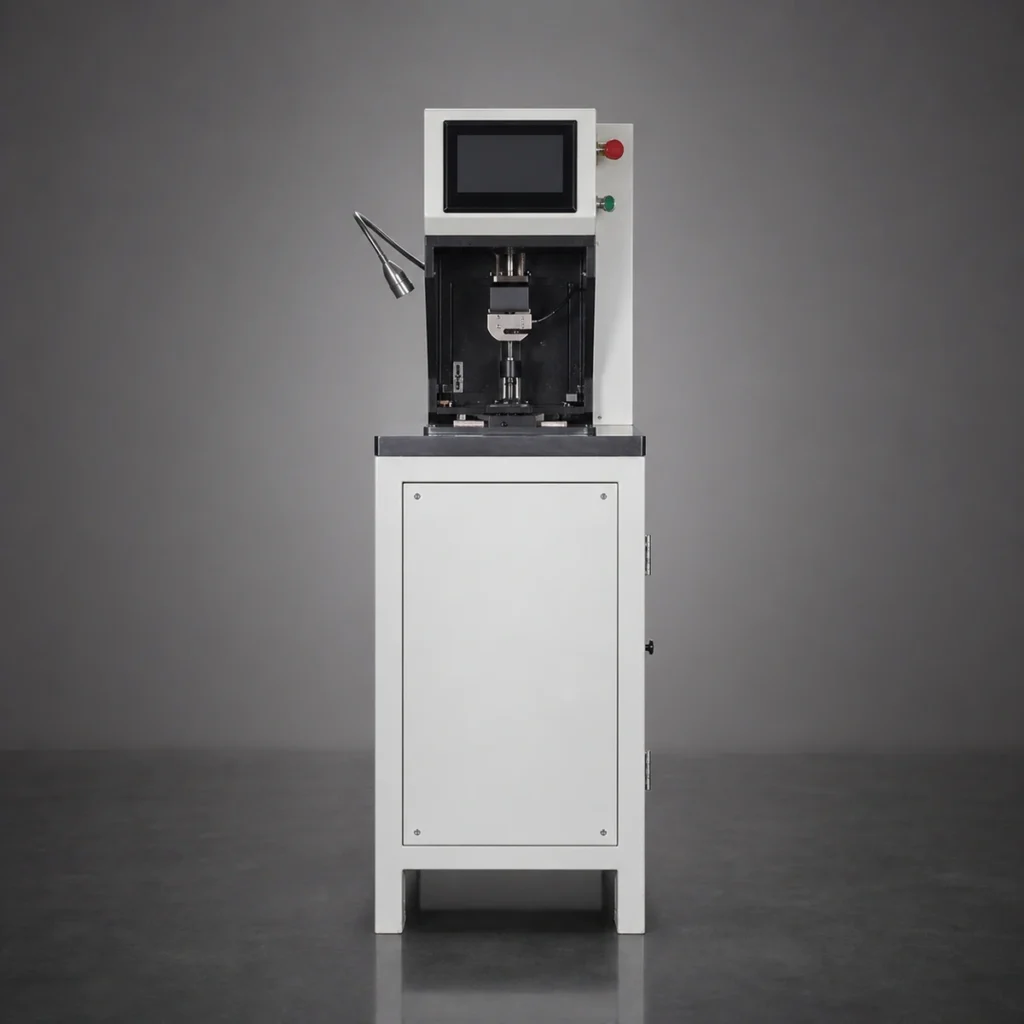

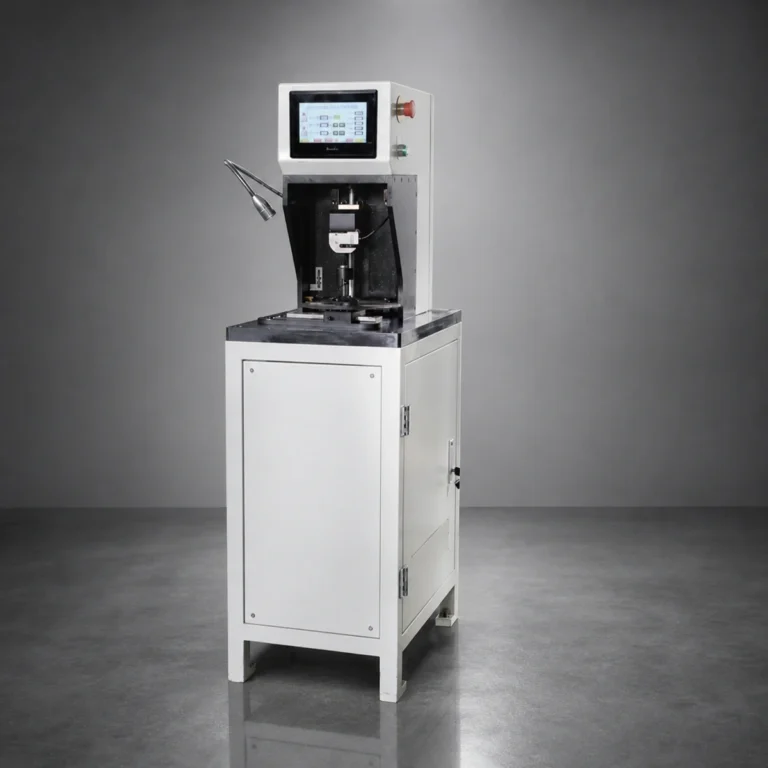

Saw Blade Welding Strength Tester
The UB-JQD800B is a saw blade welding strength tester for the brazed teeth of carbide-tipped circular saw blades. Every tooth on a finished blade is held on by its brazed joint, so that joint's strength is the difference between a blade that works and one that loses a tooth in service. This machine applies a set force to a brazed tooth and reports whether the joint stands it, which is how a batch is checked before the blades go on to be ground. It reads from 0 to 500 kg to a precision of 1 kg, on blades from 100 to 800 mm diameter with arbor sizes 15 to 50 mm.
Highlights
- PLC control with servo drive, touchscreen display and data storage
- Set a peak-force threshold for the test, or switch the peak check off and hold a set pressure for a set dwell time instead
Specifications
- Blade Diameter (mm)
- Ø100—Ø800
- Arbor Size (mm)
- Ø15—Ø50
- Hardness Range (kg)
- 0–500
- Hardness Precision (kg)
- 1
- Voltage (V)
- AC220 (Single-Phase)
- Total Power (W)
- 800
- Dimensions (mm)
- 400×600×1333
- Machine Weight (kg)
- 180
