UB-MCU300A·Tooth Grinding

Automatic Rough Grinding Machine (Robot Arm)

The UB-MCU300A is an automatic rough grinding machine for carbide-tipped circular saw blades. Roughing is the first pass over the sides of the brazed tips: it takes the bulk of the stock off, so the side-angle machine after it is left with a light, even finishing cut. The work runs in a semi-enclosed cabinet at 15 to 30 teeth a minute, at side angles of 0 to 5 degrees and a grinding width of 1 to 20 mm. It covers blades from 100 to 355 mm diameter, arbor sizes 12 to 50 mm (specials on request) and tooth pitches up to 80 mm. One operator can run several machines.

Highlights

  • A robot arm clamps and releases each blade automatically
  • Even, symmetrical tooth sides speed up the side-angle finishing pass, lower wheel wear and improve the finished tooth

Request a QuoteView Specs

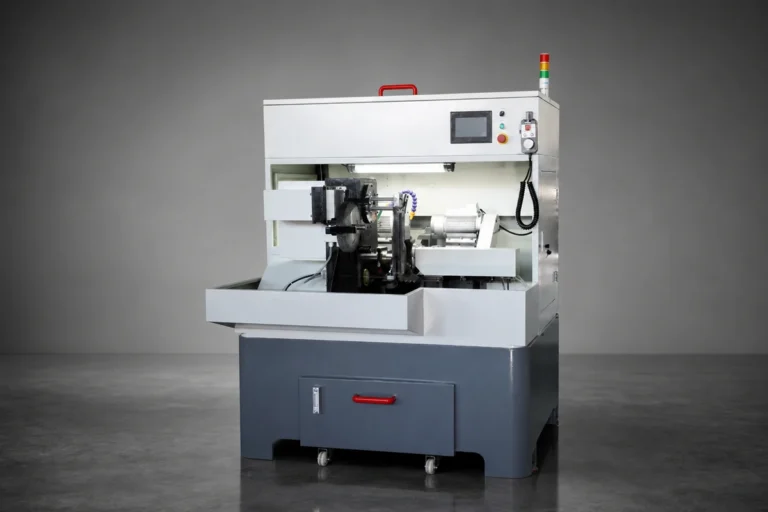

UB-MCU300A Automatic Rough Grinding Machine (Robot Arm) front view
UB-MCU300A Automatic Rough Grinding Machine (Robot Arm)
Blade Diameter
Ø100—Ø355mm
Arbor Size customizable
Ø12—Ø50mm
Max Tooth Pitch
80mm
Grinding Speed
15—30Teeth/min

Specifications

Processing

Blade Diameter (mm)
Ø100—Ø355
Arbor Size (mm) customizable
Ø12—Ø50
Max Tooth Pitch (mm)
80
Grinding Speed (Teeth/min)
15—30
Grinding Width · Side Angle (mm)
1—20
Grinding Length (mm)
3—15
Diamond Wheel (mm)
Ø180×Ø32×5×7×35T
Side Angle (°)
0—5
Wheel Speed (R/min)
2800—4000

Machine

Total Power (kW)
6
Working Air Pressure (MPa)
0.5
Dimensions (mm)
1450×1487×1763
Machine Weight (kg)
1588

* Customizable — tell us the size you need.
