CNC Slot Type Screwdriver Machine
Applications:
Stamping/Turning/End face milling/slot milling/chamfering

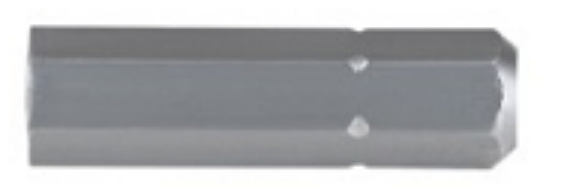

Before machining

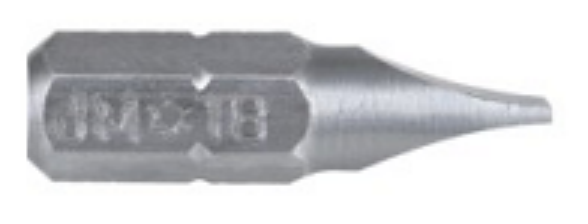

After machining
Production:
6-10 pcs/min
Machine Features:
Ø CNC compound machine with four axis linked
Ø One clamping for many operations
Ø Saving labor force comparing with traditional machines
Ø High production
Ø Better machining precision
Machine Specifications:
Item | SXC-02 | |
Working range | Square/round turning, chamfering, drilling, end milling | |
Workpiece length | mm | 25-150 |
Machining diameter | mm | Φ6-20(can be customized) |
Machining speed | pcs/min | 6-10 |
Spindle speed | r/min | 5000 |
X/Y/Z rapid | mm/s | 6000/4000 |
X/Z travel | mm | 400/80 |
/Motor power | kw | 2.2 |
Machine weight | kg | 1200 |
Power supply | 380V(415V)/50HZ | |
