CNC Philips type Screwdriver Machine
Application
Round turning/Square turning /Chamfering/Drilling/End milling/Slot milling

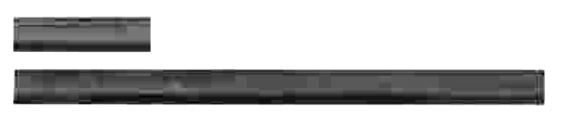

Before machining

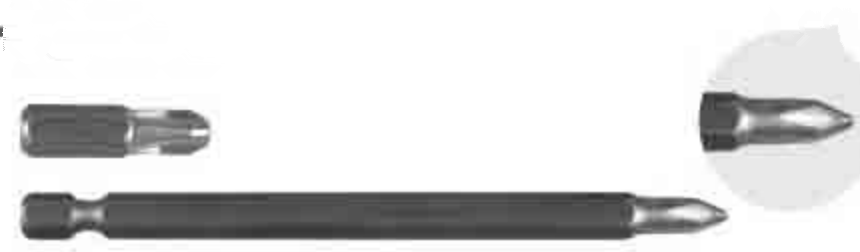

After machining
Production:
6-10 pcs/min
Machine Features
Ø CNC compound machine with four axis linked
Ø One clamping for many operations
Ø Saving labor force comparing with traditional machines
Ø High production
Ø Better machining precision
Machine Specifications
Item | SCX-01 | |
Working range | Round turning/Square turning /Chamfering/Drilling/End milling/Slot milling | |
Workpiece length | mm | 70-250 |
Machining diameter | mm | Φ6-20(can be customized) |
Machining speed | pcs/min | 6-10 |
Spindle speed | r/min | 5000 |
X//Z rapid | mm/s | 5000/6000 |
X/Z travel | mm | 400/180 |
/Motor power | kw | 2.2 |
Machine weight | kg | 700 |
Power supply | 380V(415V)/50HZ | |
