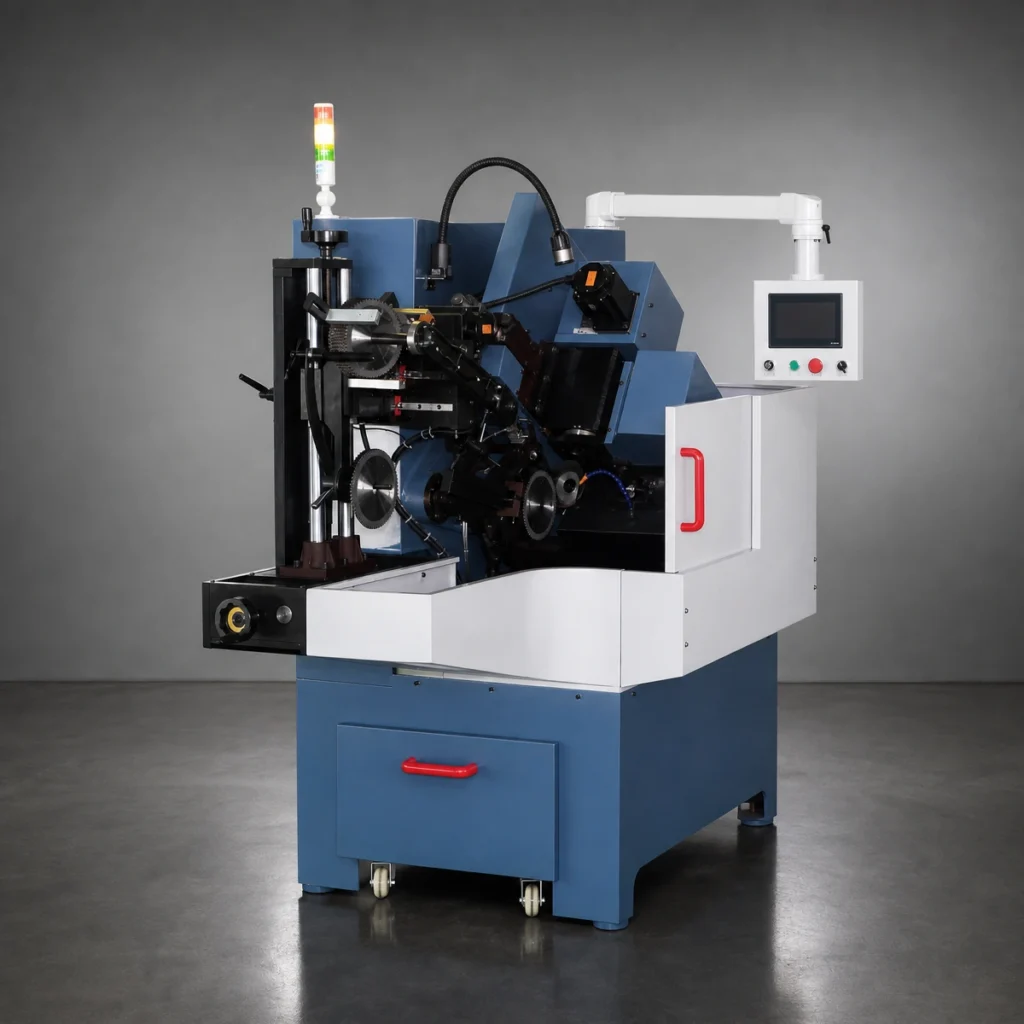

UB-MLH300J Full Automatic Back Angle Grinding Machine (Robot Arm)
Fully automatic back-angle grinding equipment for carbide circular saw blades, with a robot arm for automatic loading and unloading.
Blade Range
Blade diameter Ø100—Ø315 mm; arbor size Ø12—Ø50 mm (special specifications can be customized); tooth pitch 5—65 mm.
Arbor Size (mm)Ø12—Ø50
Max Tooth Pitch (mm)5—65
Grinding Speed (Teeth/min)20
Back Angle (°)0—+30
Highlights
- 封闭式防护设计；机械臂自动上下料，一人可操作 10—15 台；PLC 与伺服控制，支持微量进给；常用齿形程序可一次完成齿形磨削；砂轮进给自动补偿；支持特殊齿形磨削量设置。
Where It Fits
Step 7 of 10 in the circular saw blade production line.
Previous: Welding Strength Testers
Next: Cleaning Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size (mm) | Ø12—Ø50 mm |
| Max Tooth Pitch (mm) | 5—65 mm |
| Grinding Speed (Teeth/min) | 20 Teeth/min |
| Back Angle (°) | 0—+30 ° |
| Back Bevel Angle · Back Angle (°) | ±45 ° |
| Grinding Length (mm) | 0—25 mm |
| Diamond Wheel · Back Angle (mm) | Ø125×Ø20×5 mm |
| Diamond Wheel Grit · Back Angle | 220#; 280# |
| Grinding Precision (mm) | ≤0.02 mm |
Compare in This Group
| Specification | UB-MLH260JFull Automatic Back Angle Grinding Machine (Robot Arm) | UB-MLH300FFull Automatic Back Angle Grinding Machine (Robot Arm) | UB-MLH300JFull Automatic Back Angle Grinding Machine (Robot Arm) | UB-MLH650CAutomatic Move-Working Back Angle Grinding Machine | UB-MLH650JAutomatic Move-Working Back Angle Grinding Machine |
|---|---|---|---|---|---|
| Arbor Size (mm) | Ø12—Ø50 | Ø12—Ø50 | Ø12—Ø50 | Ø12—Ø50 | Ø12—Ø50 |
| Max Tooth Pitch (mm) | 5—65 | 5—65 | 5—65 | 5—65 | 5—65 |
| Grinding Speed (Teeth/min) | 20 | 20 | 20 | 20 | 20 |
| Back Bevel Angle · Back Angle (°) | ±45 ° | ±45 ° | ±45 ° | ±45 ° | ±45 ° |
