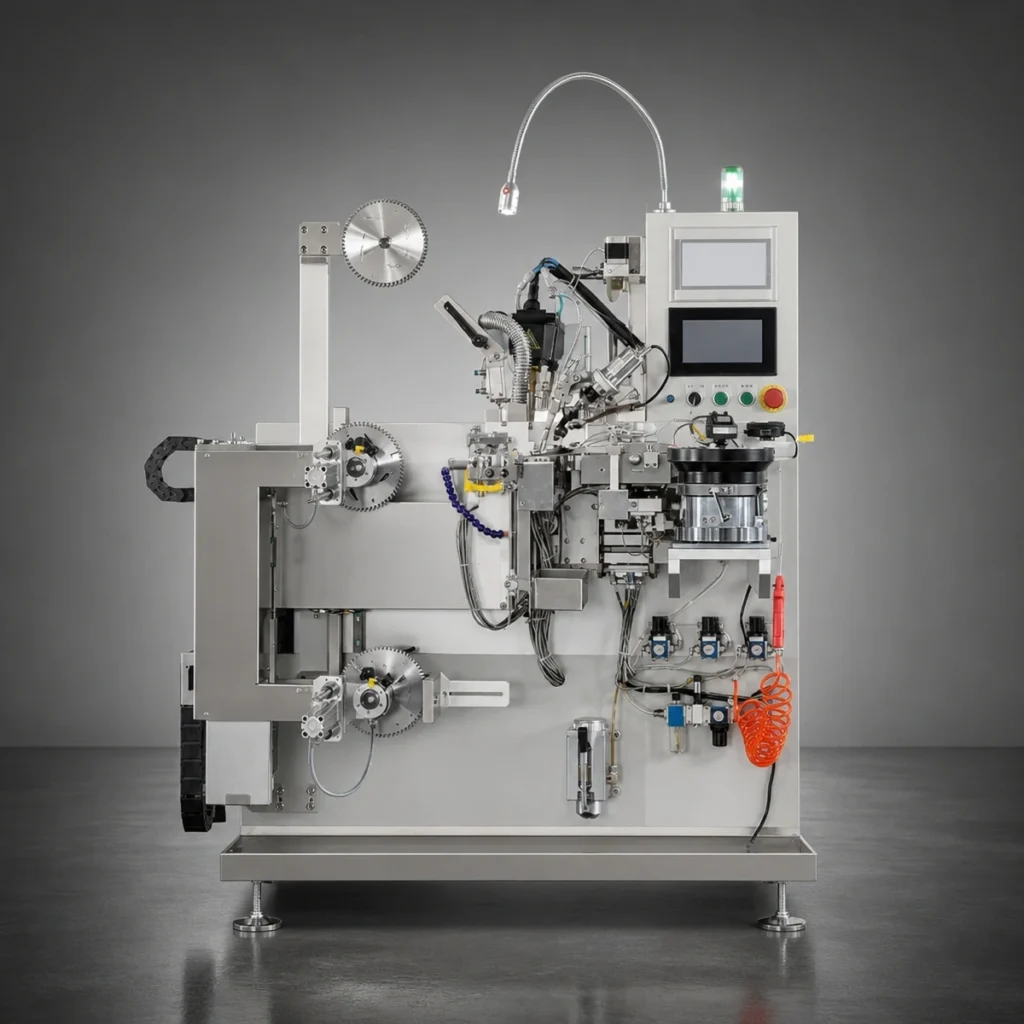

UB-HTC355D Full Automatic Brazing Machine
Single-machine automatic brazing equipment for carbide circular saw blades.
Blade Range
Blade diameter Ø100—Ø355 mm; arbor size Ø12—Ø50 mm.
Arbor Size · Custom Specifications (mm)Ø12—Ø50
Front Angle (°)-5—+35
Tooth Length (mm)3.5—10
Tooth Width (mm)1.5—8
Highlights
- Automatic blade clamping, tooth selection, dispensing, wire feeding, brazing, tempering, and tooth setting.
Where It Fits
Step 4 of 10 in the circular saw blade production line.
Previous: Polishing Machines
Next: Sand Blasting Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size · Custom Specifications (mm) | Ø12—Ø50 mm* |
| Front Angle (°) | -5—+35 ° |
| Tooth Length (mm) | 3.5—10 mm |
| Tooth Width (mm) | 1.5—8 mm |
| Tooth Thickness (mm) | 1.4—5 mm |
| Brazing Speed (Teeth/hour) | 650 Teeth/hour |
| Brazing Strength (MPa) | ≥120 MPa |
| Power Supply | 220V 50Hz |
| High-Frequency Output Power (kW) | 6.5 kW |
| Working Water Pressure (kg/cm²) | ≥3.5 kg/cm² |
* Custom specification available on request.
Compare in This Group
| Specification | UB-HKB32SFull Automatic Hole Saw Brazing Machine (Robot Arm) | UB-HTC355DFull Automatic Brazing Machine | UB-HTC355SFull Automatic Brazing Machine (Robot Arm) | UB-HTC400SPFull Automatic Brazing Machine (Robot Arm) |
|---|---|---|---|---|
| Tooth Length (mm) | 3.5—10 | 3.5—10 | 3.5—10 | 3.5—10 |
| Tooth Width (mm) | 1.5—12 | 1.5—8 | 1.5—8 | 1.5—8 |
| Brazing Speed (Teeth/hour) | 500 Teeth/hour | 650 Teeth/hour | 650 Teeth/hour | 650 Teeth/hour |
| High-Frequency Output Power (kW) | 6.5 kW | 6.5 kW | 6.5 kW | 6.5 kW |
