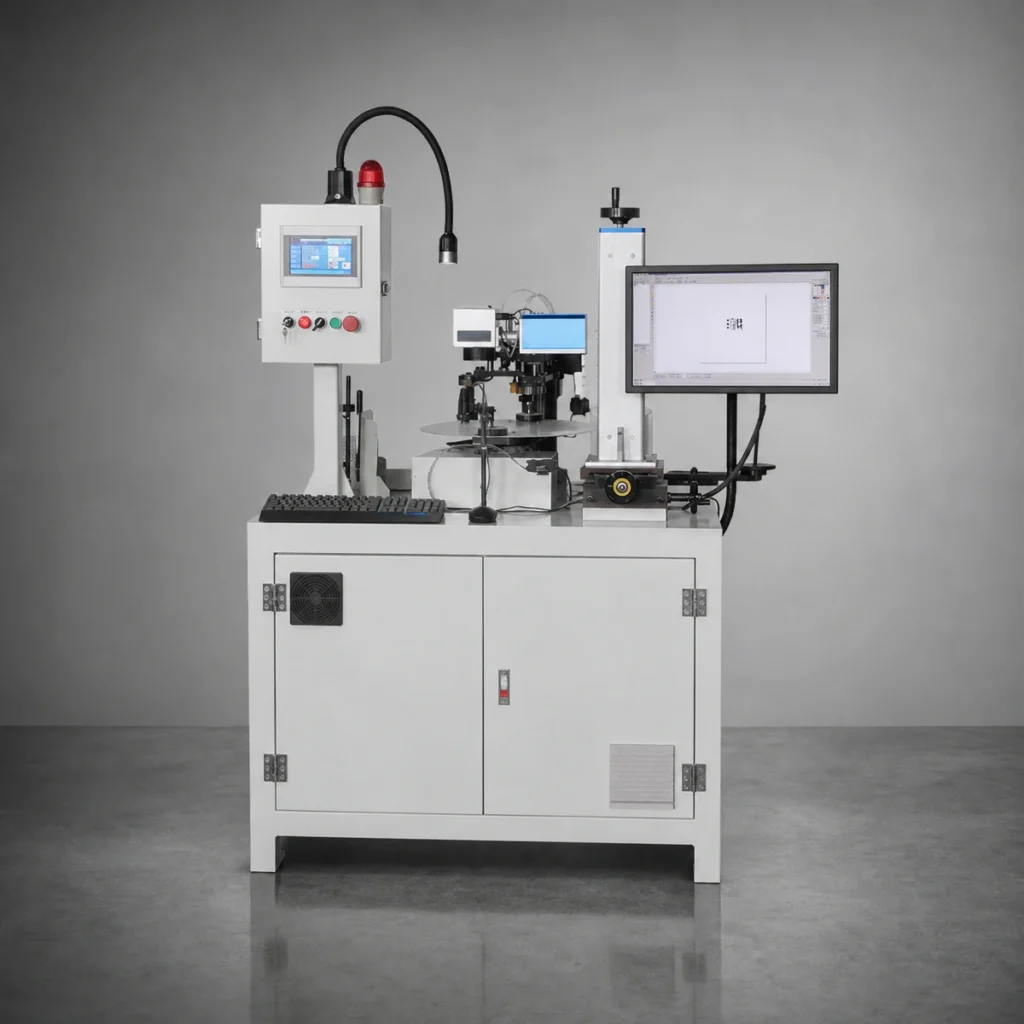

UB-DB300A Automatic Laser Marking Machine (Robot Arm)
Automatic laser-marking equipment with robot-arm loading and unloading for carbide and diamond circular saw blades.
Blade Range
Blade diameter Ø100—Ø300 mm; arbor size Ø15—Ø50 mm; special specifications can be customized.
Arbor Size · Custom Specifications (mm)Ø15—Ø50
Voltage (V)380
Production Capacity (Blades/8 Hours)Approx. 3,600
Highlights
- Fully automatic PLC control with clear parameter setting.
- Robot-arm automatic loading and unloading.
- Divider-equipped turntable for stable, efficient operation.
- Source states approximately 3,600 blades per 8 hours.
Where It Fits
Step 9 of 10 in the circular saw blade production line.
Previous: Cleaning Machines
Next: Packaging Machines
Full Specifications
| Specification | Value |
|---|---|
| Arbor Size · Custom Specifications (mm) | Ø15—Ø50 mm* |
| Voltage (V) | 380 V |
| Production Capacity (Blades/8 Hours) | Approx. 3,600 Blades/8 Hours |
* Custom specification available on request.
