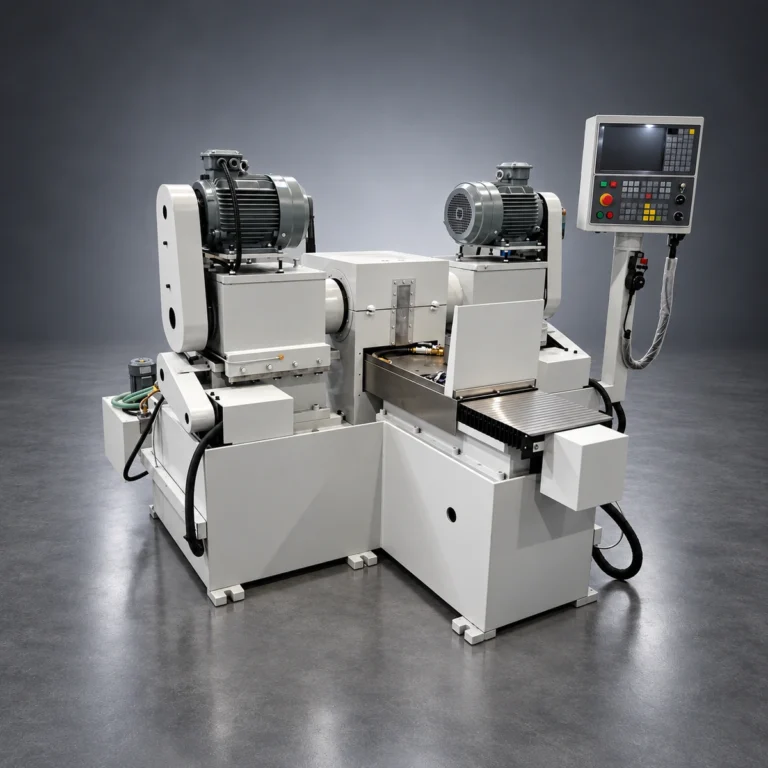

UB-3GM260B·Double Side Grinding
Double-Sided Grinding Machine
Double-side grinding machine for combination pliers, adjustable wrenches, water pump pliers, locking pliers, pipe wrenches, combination wrenches, and woodworking chisels.
Highlights
- CNC system with a parameterized programming interface.
- Servo motors control the worktable and both grinding heads; grinding feed speed is continuously adjustable.
- One setup can grind two sets of different thicknesses.
- Automatic grinding-wheel dressing and grinding-dust separation.
Specifications
- Spindle Speed (r/min)
- 2000
- Grinding Head Maximum Feed Travel (mm)
- 150
- Worktable Area (mm)
- 400×340
- Spindle Motor Power (kW)
- 5.5
- Height from Spindle Center to Worktable Surface (mm)
- 195
- Worktable Travel (mm)
- 415
- Grinding Wheel Dimensions (mm)
- Ø258×Ø182×130
- Total Power (kW)
- 16
- Overall Dimensions (L×W×H) (mm)
- 2620×2320×1630
- Weight (t)
- 1.85
- Control System
- CNC
- Table and Dual Grinding Head Drive
- Servo Motors
- Grinding Wheel Dressing
- Automatic
- Grinding-Wheel Dust Separator
- Automatic
Processing
Machine
Similar Machines
View the Full Line
Laser Hardening

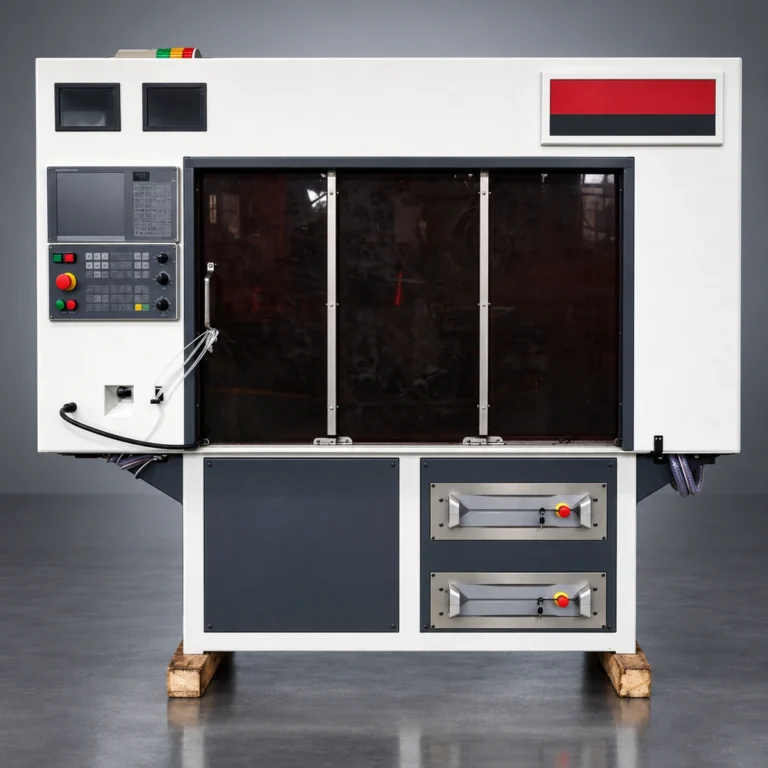

UB-3GC-QR Three-Axis Double-Head Twin-Station Pliers Cutting-Edge Laser Hardening Machine
- Worktable Area1400×1100 mm
- Worktable Surface Height850 mm
Hot Riveting
UB-QM-16 Hot Riveting Machine
- Hydraulic Pump Motor Power2.2 kW
- Hydraulic Tank Capacity180 L
Stamping Notching
UB-GY20 Hydraulic Press
- Rated Working Pressure200 kN
- Rated Hydraulic Working Pressure25 MPa
Handle Injection Molding

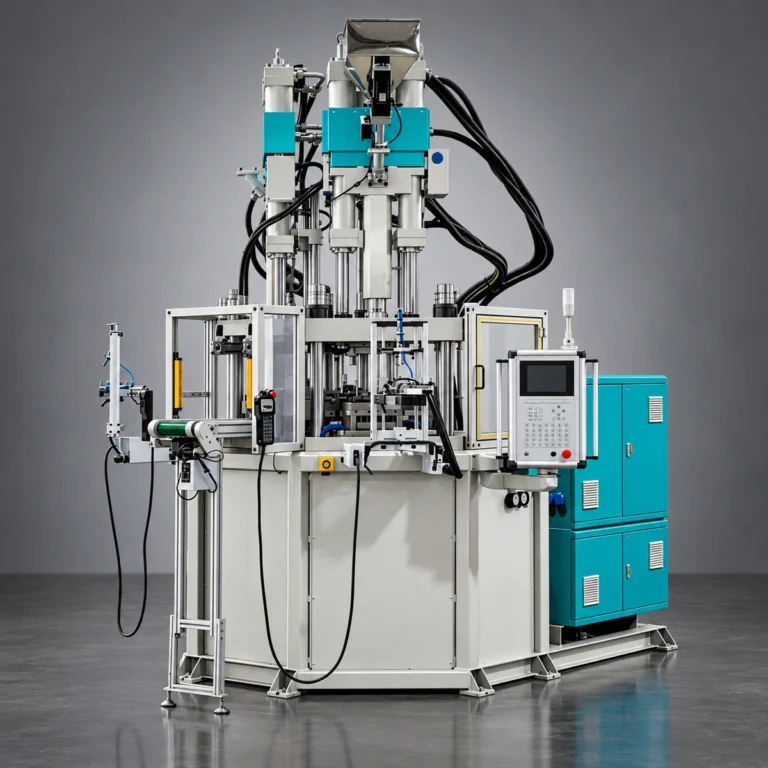

UB-VIM-1200-P8 Vertical Injection Molding Machine
